From Yearbook Signatures to Open Sauce

PenBot didn't start as a clean, finished machine. It took four or five major revisions to get anywhere close to working right. The inspiration came from a couple of places: the commercial Line-us robot, and a bit of family history. My dad helped invent the WaterColorBot, which was famously demoed to former President Barack Obama. PenBot picked up that torch with a two-link planar mechanism and coaxial motors, trading Cartesian precision for a much weirder linkage-based approach.

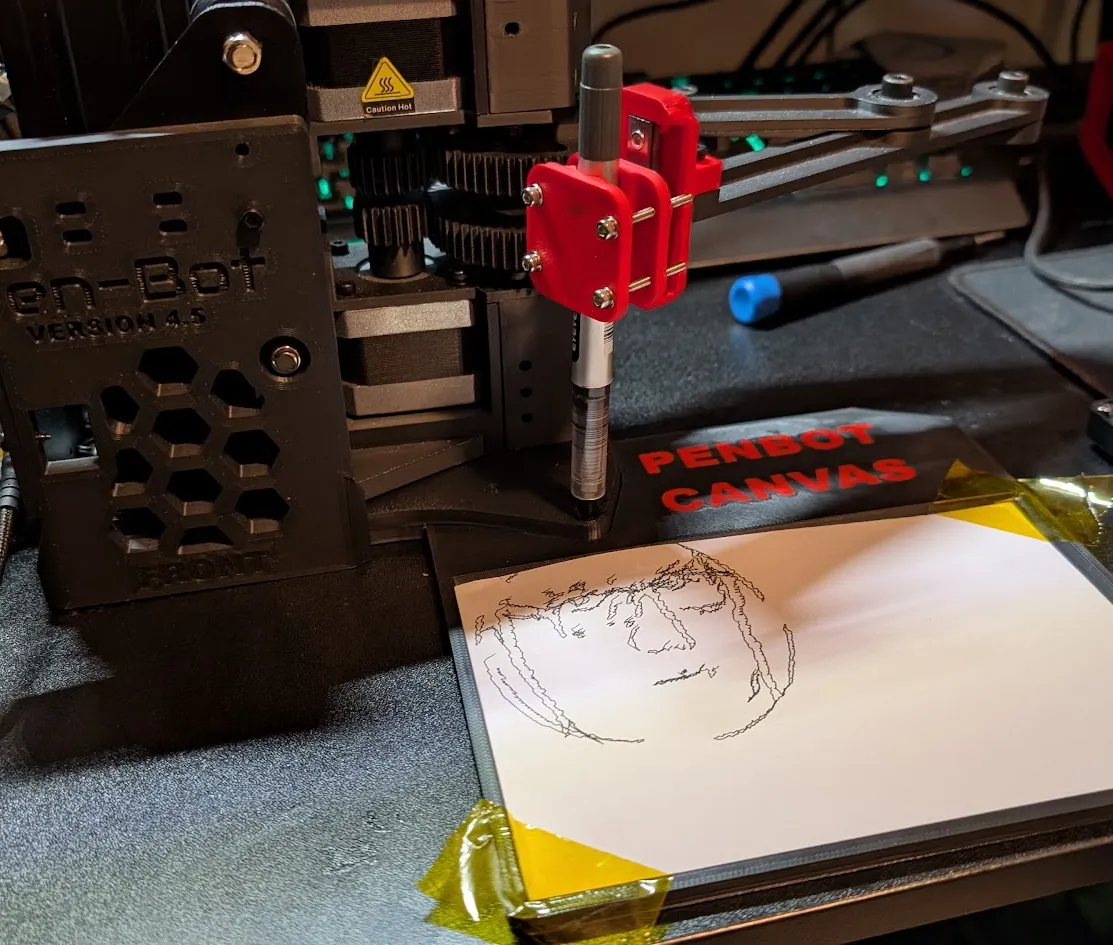

By Open Sauce 2025, PenBot MK4.5 had drawn over 50 vector portraits of attendees. Under the hood it was running a Raspberry Pi 5 with an OpenCV pipeline: grab a face from the webcam, extract the features, convert it all into vector paths the robot could actually draw. It worked, but it wasn't graceful about it. In a high-traffic booth environment, both the Pi and the motors ran hot, and the thing straight-up crashed in front of fellow creator Code Mo. That was the moment it became obvious that big linkage robots can hide a lot of mechanical sloppiness behind software, but they're heavy and a pain to haul around.

The Micro Engineering of PenBot Mini

If the original PenBot was about proving the concept could work at all, PenBot Mini is about seeing how far the miniaturization can go. Getting down to credit-card size meant ditching the Ender 3 stepper motors and the Raspberry Pi entirely. In their place: a Seeed Studio XIAO ESP32C6 board, talking over real-time USB-C to a custom Python desktop app.

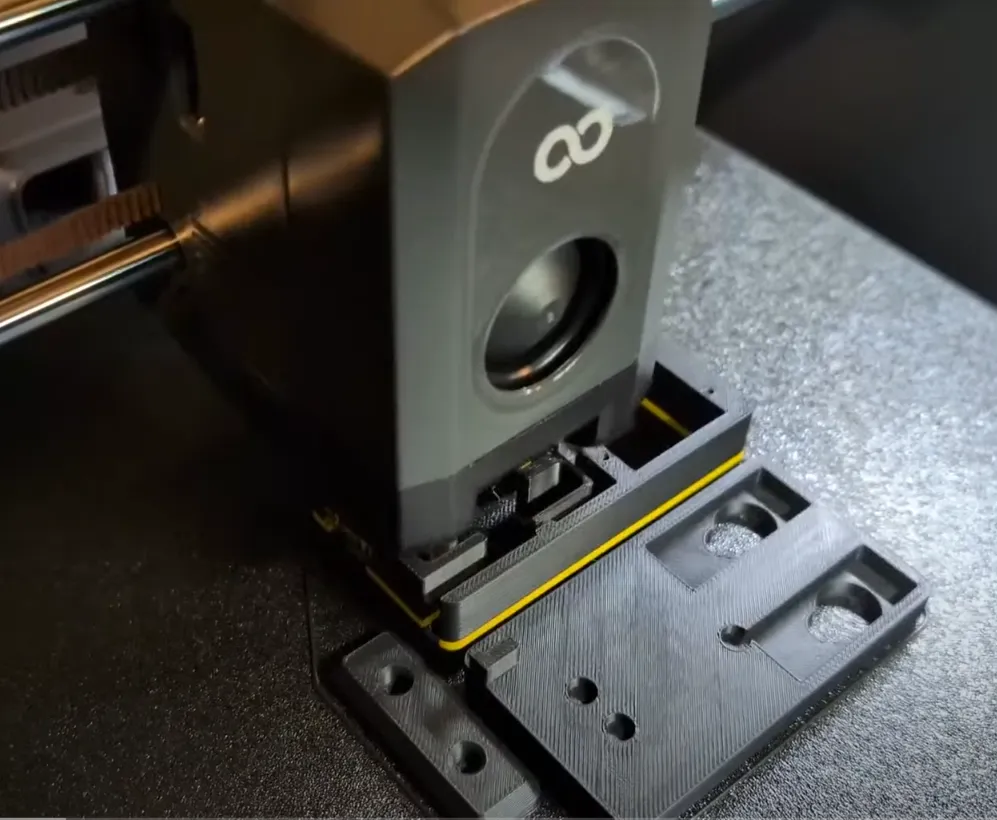

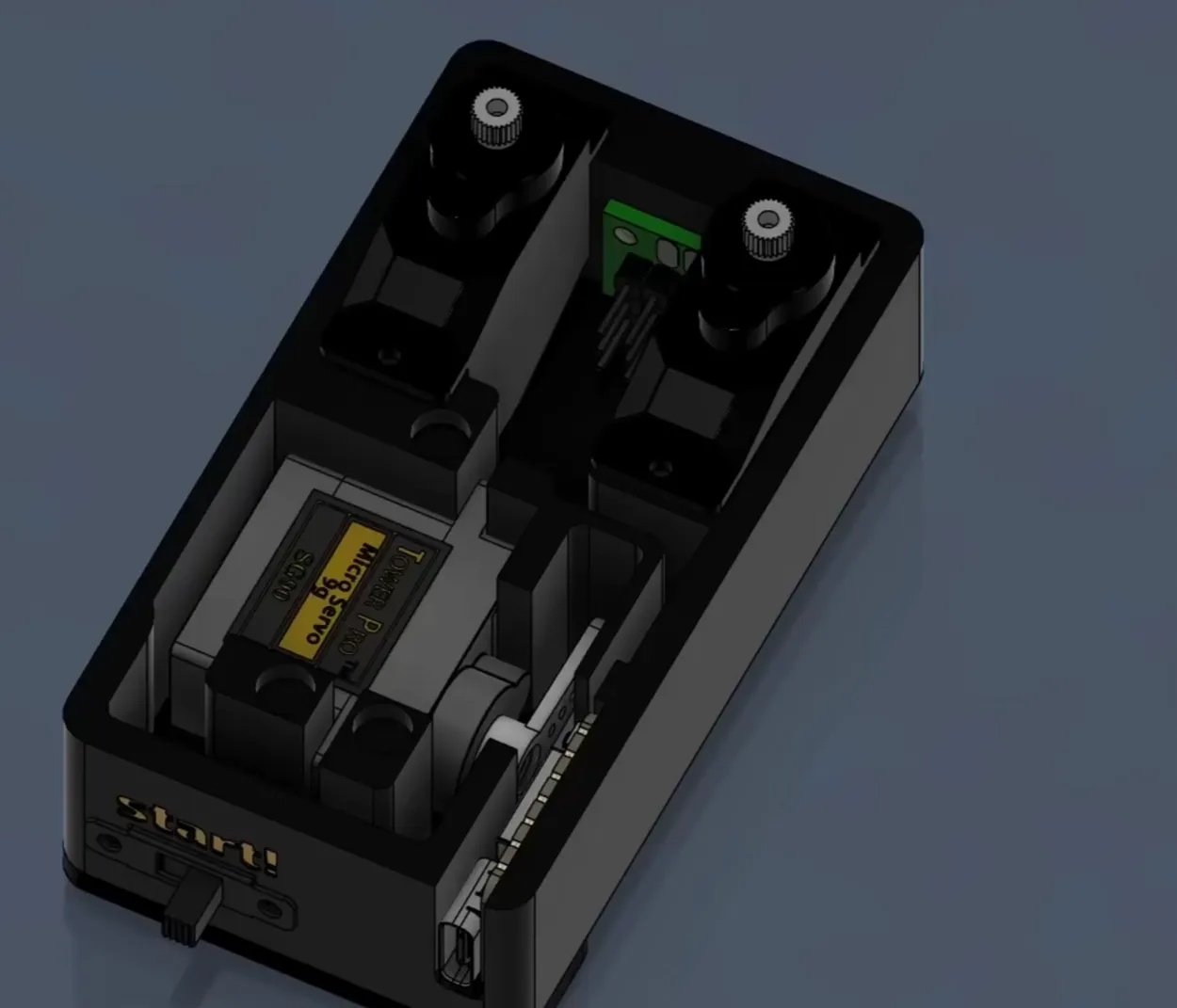

At this scale, precision stops being a nice-to-have and becomes the whole game. Half a degree of slop in a tiny servo turns into visible drift on the page. To keep that in check, the five-bar linkage uses miniature bearings built directly into the joints to kill wobble at the source. The chassis and arms are 3D printed on an Elegoo Centauri Carbon 2, using high-quality engineering-grade filament, which is what makes the tight tolerances possible in the first place. A cheap MG90S servo handles the Z-axis lift for multi-line drawings, while two more precise Pettoy servos drive the main arms.

Software That Does the Heavy Lifting

Here's the catch with the mechanical design: the pen tip sits 3/4 of an inch past the final pivot point. That offset sounds small, but it introduces a serious amount of math. To handle it, the ESP32C6 firmware runs an iterative solver that refines the joint angles up to five times per coordinate just to land the pen where it's supposed to be.

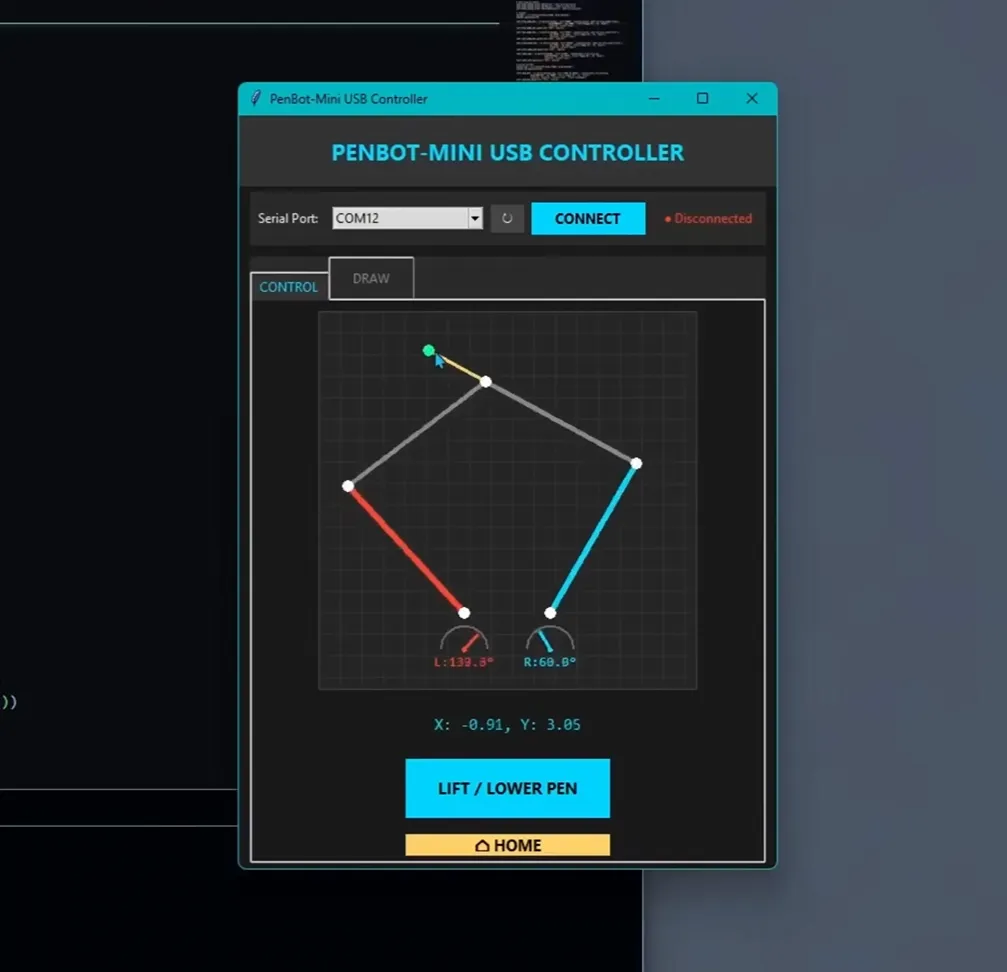

The desktop app isn't just forwarding raw mouse movement either. It resamples every curve into evenly spaced chunks and runs a "ghost simulation" first, checking that the linkage arms won't collide with each other or twist past their limits before a single command gets sent. A 200-command queue buffers everything coming in, and commands execute with a 30-millisecond rate limit so the pen doesn't snag and tear the paper mid-line.

The Paradox of Scaling Down

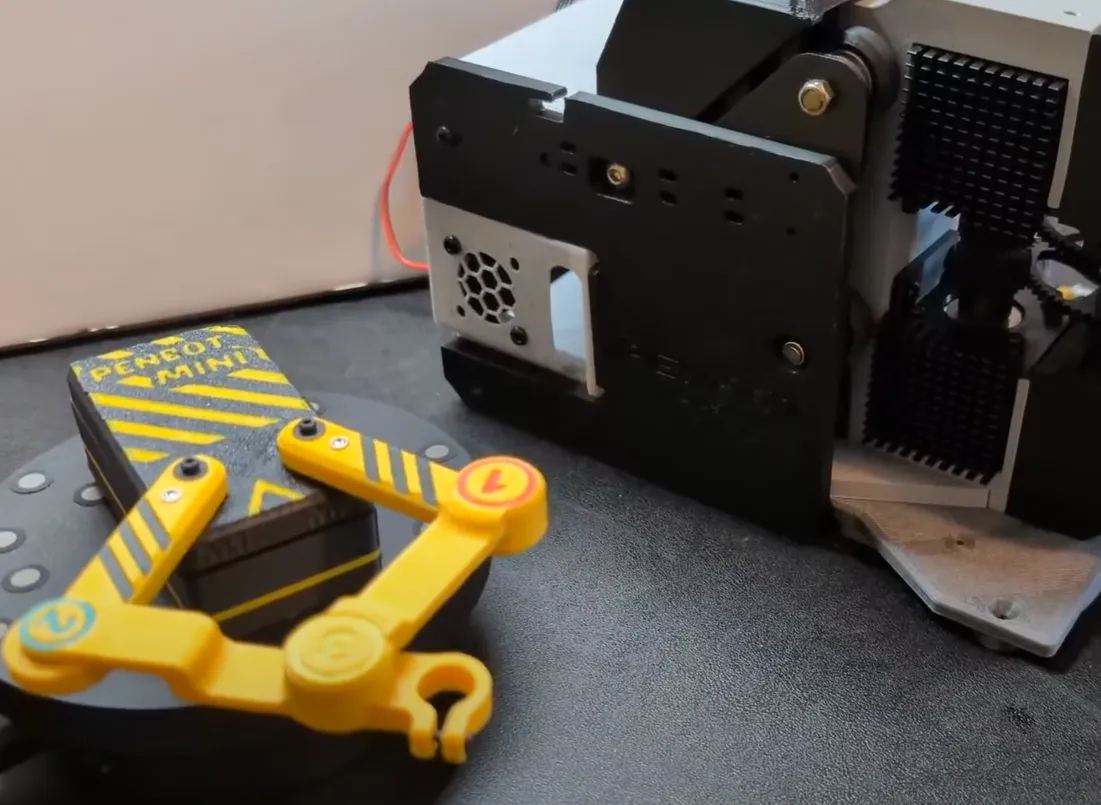

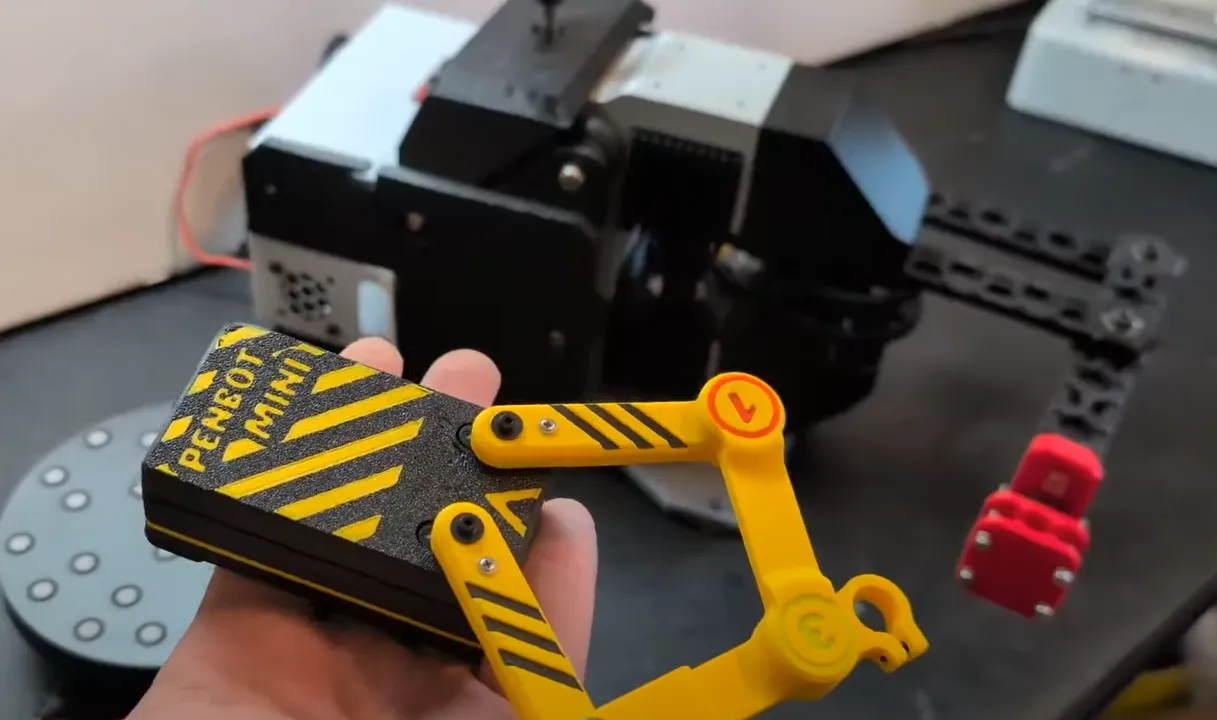

Building both versions of PenBot exposed a pattern that shows up a lot in robotics: making something smaller doesn't make the engineering easier, it makes every physical flaw louder. The original PenBot could lean on beefy stepper motors and generous coordinate transforms to paper over its inaccuracies. PenBot Mini doesn't get that luxury. At this size, there's nowhere to hide, and the mechanical build has to be right.

That's really the throughline of this whole project: the future of desktop robotics isn't just smaller electronics, it's pairing precision manufacturing (accurate 3D printing, micro-bearings) with software solvers built specifically to compensate for what the hardware can't.

PenBot Mini still draws with a bit of a charming wobble right now, and that's fine. The next step is adding small reduction gears to mechanically boost precision without blowing up the credit-card footprint.

Try It Yourself

All the code and CAD files for PenBot Mini will be up on GitHub for anyone who wants to build, tweak, or improve their own pocket-sized plotter.

Watch the build video: PenBot Mini on YouTube

Further reading: Hackster.io also covered the build in this writeup

Code & Designs: Full Repository on GitHub
